Hikmicro Falcon FQ25 Thermal
Hikmicro Falcon FQ25 Thermal

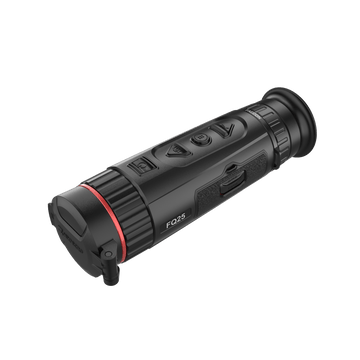

The HIKMICRO Falcon FQ25 Thermal Monocular is equipped with a 640 × 512 infrared detector and a 1024 ×768 OLED display. It supports functions of observation, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as searching and rescuing, hiking, travel, and hunting, etc.
The new HIKMICRO Falcon FQ25 Pro Hand Held thermal imager shares the performance specification of the popular Falcon FQ50 Pro but with a 25mm lens. This translates into a considerably wider field of view, making it perfect for wildlife watching, ecology and wildlife surveys.
640 x 512px THERMAL SENSOR
The Falcon FQ25 Pro is equipped with a highly sensitive 640×512 12 micron Sub 20mk NETD sensor to enable perfect detail recognition with a detection range of up to 1300m. The 1.4x to 11.2x magnification can generate a 31m field of view at 100m.
REMOVEABLE BATTERIES
The HIKMICRO Falcon comes with 2 interchangeable batteries, with a run time of up to 6 hours on each, ensuring the user a full night of run time.
| Thermal Module | |
|---|---|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F# = 1.0 |
| Focal Length | 25 mm |
| Aperture | F1.0 |
| Min. Focusing Distance | 2.5 m |
| Digital Zoom | 1×，2×，4×，8× |
| Optical Magnification | 1.42 |
| Field of View (H × V), Degrees/m @100 m | 17.5° × 14.0°/30.8 m × 24.6 m |
| Detection Range | 1200 m |
| Image display | |
| Monitor | 0.39 inch, OLED, 1024 × 768 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| system | |
| Storage | Built-in memory module (64 GB) |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Power Supply | |
| Power | 5 V, 1.95 W |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 5 hours continuous running with CVBS and hotspot function off (@25°C) |
| General | |
| Work Temperature/Humidity | From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less |
| Protection Level | IP67 |
| Dimension | 190.3 mm ×58.3mm × 66.9 mm |
| Weight | 500 g (1.10 lb) |
