HIKMICRO STELLAR 3.0 SQ35L

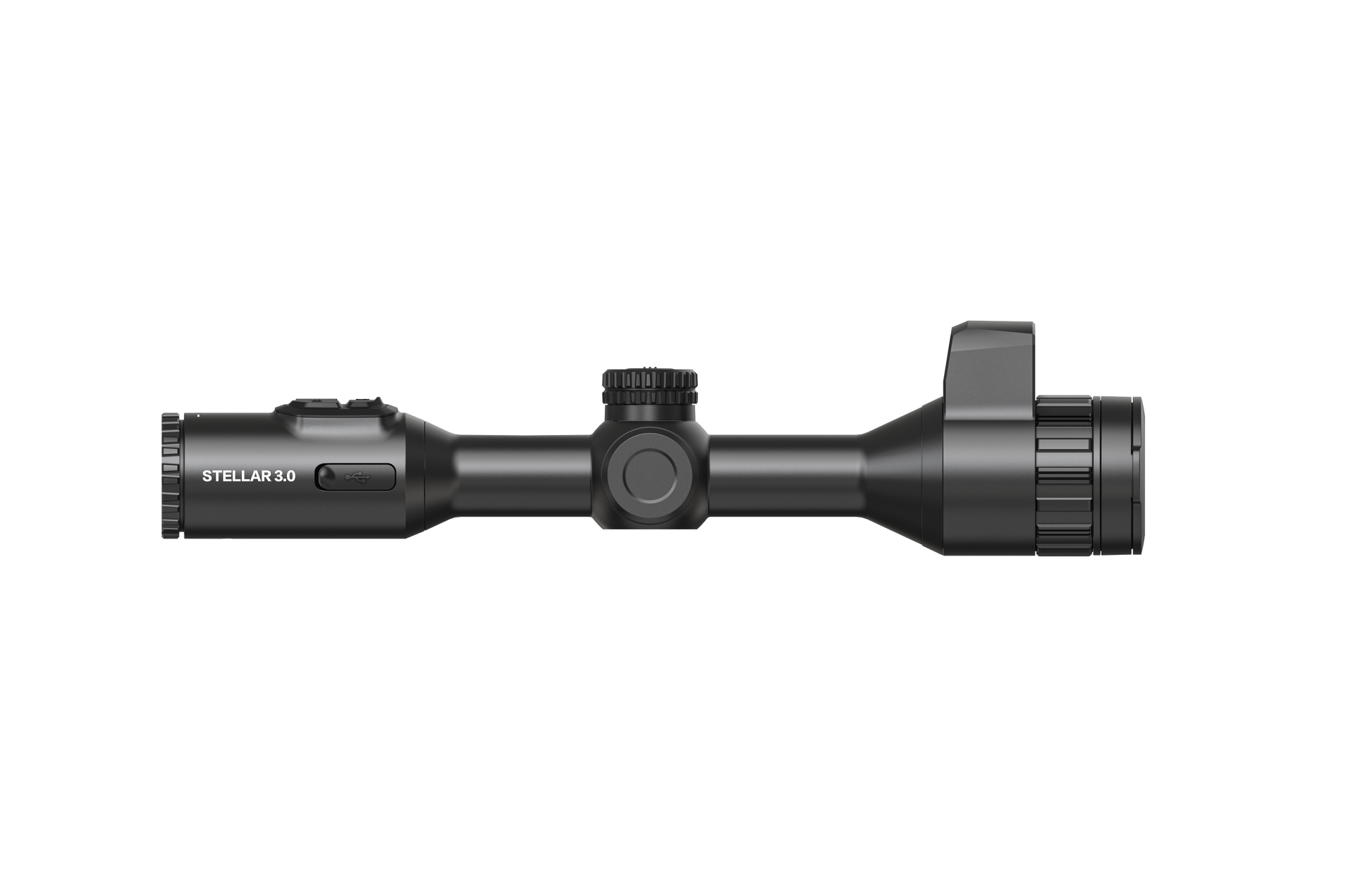

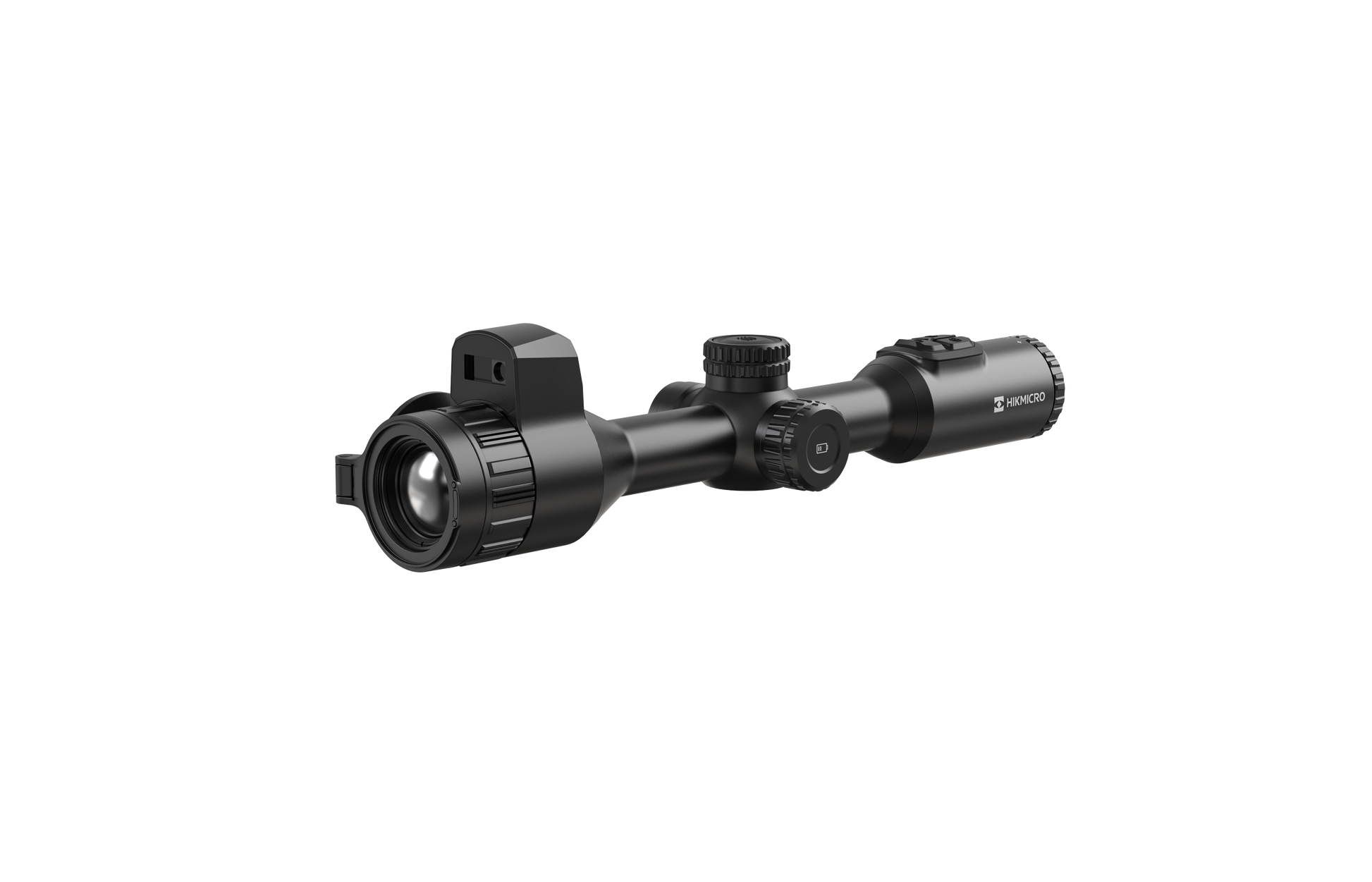

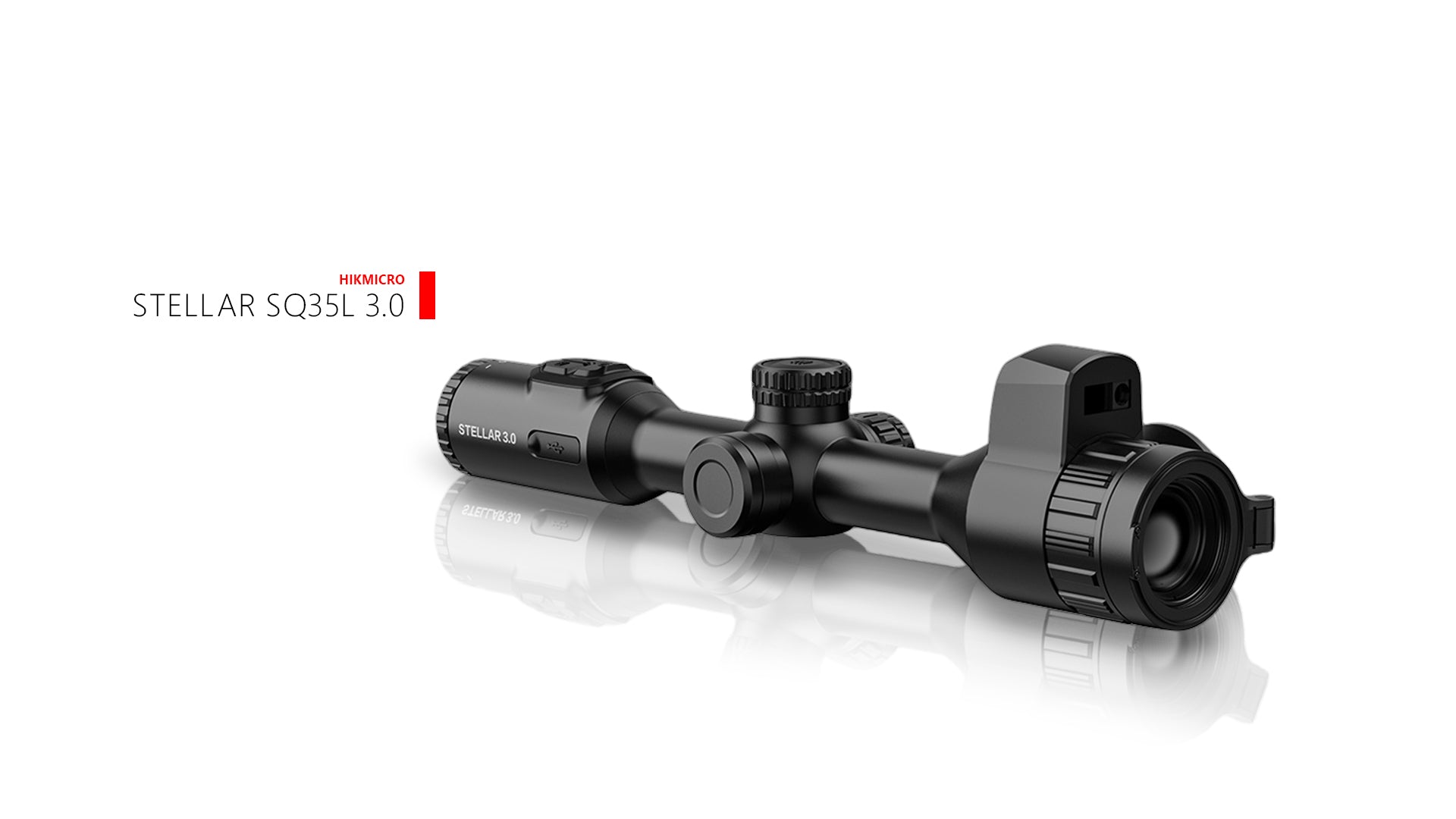

HIKMICRO STELLAR SQ35L 3.0 Thermal Scope

The HIKMICRO STELLAR SQ35L 3.0 Thermal Scope features a high-performance 640 × 512, 12μm thermal detector with exceptional <15mK NETD sensitivity, delivering excellent detail and target recognition across challenging weather and lighting conditions.

HIKMICRO's latest Image Pro 2.0 processing algorithm combines with the HIKMICRO Shutterless Image System (HSIS) to provide smooth, uninterrupted viewing without traditional shutter-based image pauses.

A large 2560 × 2560 1.03" OLED display makes target identification fast and clear, while the integrated 1000m laser rangefinder and ballistic calculation assist with accurate ranging and shooting.

Designed primarily for field and forest hunting, the STELLAR SQ35L 3.0 combines high thermal sensitivity, long-range detection and a traditional scope-style design.

Key Features

• 640 × 512 resolution, 12μm thermal detector

• High-sensitivity thermal module with NETD <15mK

• 35mm F1.0 lens

• Detection range up to 1800m

• 2560 × 2560 1.03" OLED display

• HIKMICRO Shutterless Image System (HSIS)

• Built-in 1000m Laser Rangefinder

• Integrated Ballistic Calculation

• Up to 9 hours continuous operation

• Internal rechargeable batteries + replaceable 18650 battery

• High shock resistance up to 1000g / 0.4ms

Laser Rangefinder

• Laser Safety Class: Class 1

• Wavelength: 905nm

• Maximum Measuring Range: 1000m

• Minimum Measuring Range: 10m

• Measurement Accuracy: ±1m

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays

• Resolution: 640 × 512

• Frame Rate: 50Hz

• Pixel Interval: 12μm

• Response Waveband: 8μm–14μm

• NETD: <15mK (@25°C, F#=1.0)

• Lens: 35mm, F1.0

• Focus Mode: Focus Ring

• Detection Range: 1800m

• Minimum Focusing Distance: 3m

• Magnification: 2.5×–24.5×

• Zoom: Continuous zooming with 1× step value

• Field of View: 12.5° × 10.0° / 21.9m × 17.5m @ 100m

Image & Display

• Display: 1.03" OLED, 2560 × 2560

• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

• Exit Pupil: 6mm

• Eye Relief: 45mm

• Diopter Range: -4D to +4D

• Brightness Adjustment: Yes

• Tone Adjustment: Cold / Warm

• Contrast Adjustment: Yes

• Zoom Pro: Yes

• Image Pro 2.0: Yes

• HIKMICRO Shutterless Image System (HSIS): Yes

System Features

• On-board Video Recording

• Snapshot Capture

• Audio Recording

• Recoil-Activated Recording

• Standby Mode

• 64GB Built-in EMMC Storage

• Picture-in-Picture (PIP)

• Wi-Fi Hotspot

• Hot Track

• Distance Measurement

• 5 Zeroing Profiles

• Freeze Zeroing

• Maximum Recoil: 1000g / 0.4ms

• Local Album

• Ballistic Calculation

Power Supply

• Internal Battery: Two rechargeable lithium batteries

• External Battery: One replaceable and rechargeable 18650 battery

• Operating Time: Up to 9 hours*

• USB Type-C: DC 5V / 2A

• Supports QC3.0

*Operating time measured at 25°C with Zoom Pro and LRF on.

Charging Note: Only the built-in battery is charged via the USB Type-C cable. The external 18650 battery must be charged using a compatible battery charger.

General

• Protection Rating: IP67

• Mounting Standard: 30mm

• Dimensions: 410 × 85 × 86.3mm

• Weight: 830g without external battery

• Operating Temperature: -30°C to +55°C

• Centre Height: 32mm
