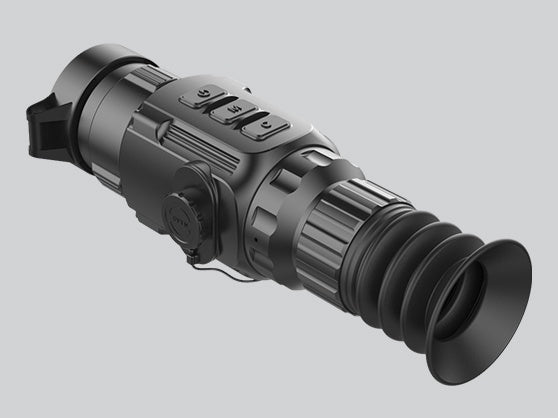

Hunter Series: Thermal Mini-Sight
With XST Technology for superior image quality, Night Tech Mini-Sights have been developed with the hunter in mind
Night Tech customers wanted a high quality thermal mini-sight that was lightweight, simple to use, available at a competitive price and that didn’t have any needless complexities.
Introducing the Hunter Series: Mini-Sight from Night Tech. Incorporating the latest in thermal imaging developments – XST Technology, our latest sight means you can now detect objects at greater distances and identify them with better accuracy. Enjoy class-leading performance with images that are up to 3 times sharper and more sensitive than other thermal products on the market.
Features
- One of the smallest and lightest thermal scopes on the market
- Simple and easy to use with no fancy or complex options
- High-resolution 1280×960 pixel HD display
- XST Technology providing exceptional image quality and clarity
- Thermal Detection ranges out to 2100 metres
- Easy to use on an Extended Eye Relief Picatinny Mount (included)
- Recoil rated to 1000Gs
- Rugged, reliable and built to last
- Multiple thermal colour pallets including black, white, red hot and colour mode
- Multiple zero settings for different setups
- Bluetooth capability for future expansion
- Built-in Accelerometer and Digital Compass for improved accuracy
Specifications
Product | MS-19 | MS-30 | MS-42 |
Magnification | 2.5x-5x | 1.5x-6x | 2.0x-8.0x |
Sensor and Processor | XST Technology | ||
Display Resolution | 1280 x 960 HD | ||
Rabbit Detection | 150m | 200m | 300m |
Fox Detection | 250m | 350m | 500m |
Person Detection | 600m | 1000m | 1500m |
Deer Detection | 750m | 1400m | 2100m |
Objective Lens | F19/1.0 | F30/1.2 | F42/1.2 |
Frame Rate | 25Hz | 50Hz | |
Resolution | 256 x 192 | 384 x 288 | |
Field of View | 9.2° x 6.9° | 14.9° x 11.2° | 10.7° x 8° |
Picture in Picture | Not Included | Included | |
Reticle | 4 Types / 4 Colours | ||
Thermal Palettes | Black, White, Red Hot, Colour | ||
Zero Calibrations | 4 | ||
Battery | CR123 x 2 (3.0-3.7V) | ||
Maximum battery life | 6 hours | 4 hours | |
IP rating | IP66 | ||
Weight (without batteries) | 380g | 410g | 420g |
Dimension (mm) | 186 x 60 x 60mm | 180 x 60 x 60mm | 195 x 60 x 60mm |
Mounting System | Picatinny | ||
Recoil Ratting | Shock-proof to 1000G (300 Win Mag) | ||
Connection Type | USB Type-C | ||
External power supply | Via USB | ||
Bluetooth | Not Included | Included | |
Video Recording | No Recording | Via RCA cable (included) | |
Warranty | 2 |
