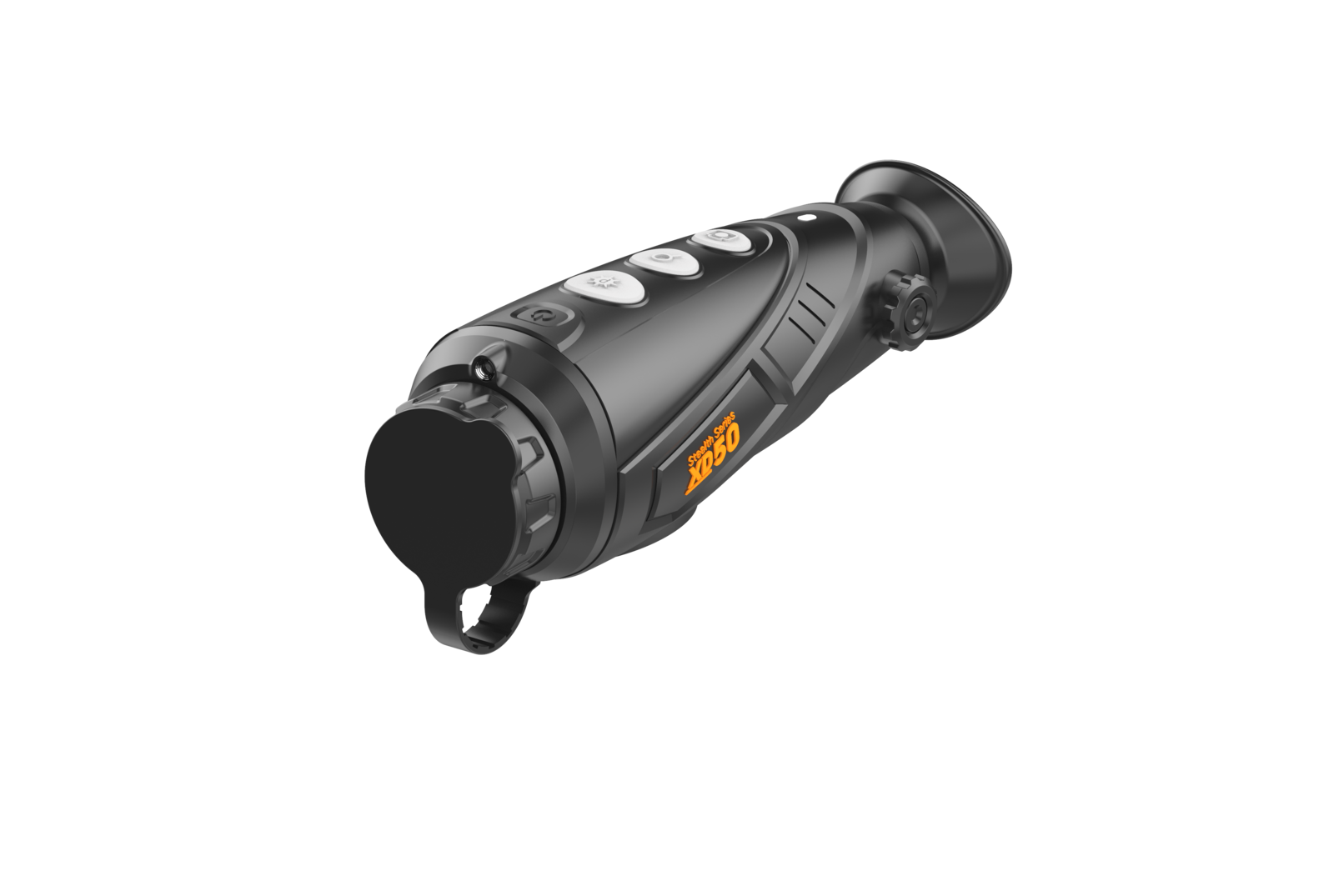

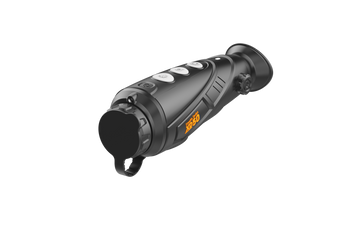

Meet our new Stealth Series Monocular range, with built-in photo and video recording showcasing 1280 x 960 HD screens and Wi-Fi connectivity on all models. Some models also have the option of higher resolution 640 x 480 sensors and the proven and superior image quality of our propriety XST sensors. This great new range of Thermal Monoculars have been developed for a variety of applications including the outdoors, hunting, marine, security, law enforcement and surveillance.
XST Technology
XST Technology combines superior VOX sensor technology with advanced image processing algorithms which means you can detect objects at greater distances and identify them with better accuracy. Enjoy class-leading performance with images that are up to 3 times sharper and more sensitive than other thermal products on the market.
Features
- Simple and easy to use
- High-resolution 1280 x 960 pixel HD display
- XST Technology providing exceptional image quality and clarity
- Thermal detection ranges out to 2,500 metres
- Rugged, reliable and built to last
- Multiple thermal colour pallets including black, white, red hot and colour mode
- Wi-Fi capability for live streaming, data transfer via Android and iOS App
- Hot spot tracking
- Stadiametric rangefinder for object distance detection
- High image refresh rate of 50Hz
- Low F numbers of F1.0 to F1.2 to allow maximum IR light on to the thermal sensor for the best possible image quality Specifications
Specifications
Stealth Series Model | XD35 | XD50 | XD50 Pro | XD65 Pro |
Magnification (approx) | 1.75x -7.0x | 2.5x-10x | 1.5x-6x | 2.0 x-8.0x |
Sensor and processor | XST Technology | |||
Display resolution | 1280x960 HD | |||
Detection range (man) | 900m | 1250m | 1250m | 1800m |
Detection range (deer) | 1250m | 1750m | 1750m | 2500m |
NETD, mk | <50 | |||
Frame rate | 50Hz | |||
Resolution | 384x288 | 640x480 | ||
Comparable focal length* | 35mm | 50mm | 50mm | 65mm |
Pixel size, μm | 17 | |||
Field of view | 14.9°x11.2° | 10.7°x8° | 17.7°x13.3° | 12.4°x9.3° |
F Number | F1.0 | F1.0 | F1.0 | F1.2 |
Objective lens size mm | 25mm | 35mm | 35mm | 50mm |
Thermal palettes | 4 | |||
Battery | Internal USB rechargeable | |||
Battery life (power saving) | 4.5hrs | 4hrs | ||
IP rating | IP66 | |||
Weight (without batteries) | 450g | 520g | ||
Dimensions (mm) | 181x65x64 | 186x65x64 | 186x65x64 | 202x65x64 |
Data interface | Wi-Fi / App | |||
External power supply | Via USB cable, includes charging | |||
Wi-Fi | Included | |||
Stadiametric range finder | Included | |||
Video recording | Internal 8GB photo and video | |||
Conformance | CE / RoHS | |||
Warranty | 2 Years |
