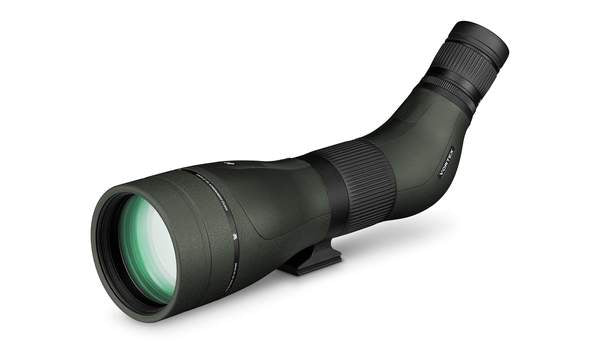

Vortex Diamondback HD Spotting Scope 20-60x85 Angled

Out of stock
Spotting Scope
VORTEX
Description Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diam...
$850.00

Description

Glassing out west demands an HD optic, but other systems can't get you the clarity you need to see a tail twitch in low light, or pick a tine out of dense cover. The redesigned Diamondback HD spotting scopes have all the horsepower the long-distance hunter needs, and they excel in lowlight—right when you need it most. We've also streamlined the exterior for a sleeker, snag-free profile, building in a helical focus wheel.

OPTICAL FEATURES

HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

CONSTRUCTION FEATURES

ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Shockproof Rugged construction withstands recoil and impact.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Rubber Armor Provides a secure, non-slip grip, and durable external protection.

CONVENIENCE FEATURES

Adjustable Eyecups Twist up and down for comfortable viewing with or without eyeglasses.
Helical Focus Allows for fast and fine adjustments.
Arca-Swiss Compatible Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
Tripod Adaptable Allowing use on a tripod or car window mount. Tripod adapter required.
Rotating Tripod Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
Built-in Sunshade Reduces glare and shields the objective lens from raindrops and snow.
SPECIFICATIONS
  • Magnification 20-60x
  • Objective Lens Diameter 85 mm
  • Linear Field of View 108-60 ft/1000 yds
  • Angular Field of View 2.1-1.1 degrees
  • Close Focus 24.6 feet
  • Eye Relief 20.3-18.3 mm
  • Exit Pupil 4.25‐1.41 mm
  • Length 40.6 cm / 16 inches
  • Weight 1.7 kg / 60.9 oz
