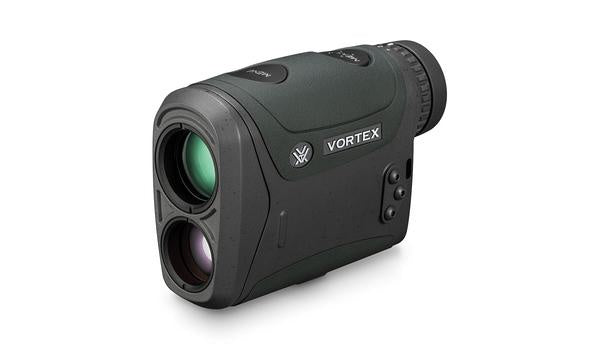

Vortex Razor HD LRF Rangefinder

The Razor HD 4000 is the essential companion for the extreme hunter, archer and shooter. The extremely effective angle compensated laser rangefinder features four targeting modes (Normal Mode, First Mode, Last Mode and Extended Laser Range Mode) for any ranging environment. The primary HCD (Horizontal Component Distance) range mode provides key angle compensated range information required by the vast majority of shooters in a simple, quick to read display. The Razor HD 4000 also has a LOS (Line of Sight) range mode and scan feature.

FEATURES
OPTICAL FEATURES
HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
XR™ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
CONSTRUCTION FEATURES
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Rugged Design Built to handle tough situations. Compact and lightweight.
Rubber Armor Provides a secure, non-slip grip, and durable external protection.
Diopter Adjusts for differences in a user's eyes. Located on right eyepiece.
Tripod Adaptable Compatible with a tripod adapter, allowing use on a tripod or car window mount.
Magnesium Chassis Decreases weight and increases strength.
PERFORMANCE FEATURES
ELR Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly extended range distances. Best used on a tripod.
HCD Horizontal Component Distance (HCD) mode for angle compensated ranging.
LOS Line of Sight (LOS) mode displays actual line of sight range.
Scan This feature displays continual distance readings when panning across a landscape or tracking a moving animal.
Easy-to-use Menu Intuitive, easy-to-use menus feature a simple, clean illuminated display.
AWC ™ All Weather Capable ranging allows the unit to return a distance even in a variety of adverse weather conditions.
Ranging Format Range in yards or meters.

RETICLE
HCD CORRECTED SHOOT-TO RANGE
The Razor HD 4000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.

SPECIFICATIONS
Range Reflective (yards) 4000
Range Tree (yards) 2500
Range Deer (yards) 2200
Accuracy (≤ 199.9 yds) .5 yds
Accuracy (200 - 1000 yds) 1 yds Accuracy (> 1000 yds) 2 yds
Max Angle Reading + / - 70 degrees
Magnification 7x
Objective Lens Diameter 25 mm
Linear Field of View 341.25 ft @ 1,000 yds
Angular Field of View 6.5 degrees
Eye Relief 16-19 mm
Length 11.4 cm / 4.49 inches
Width 3.4 cm / 1.34 inches
Weight 280 grams / 9.9 oz

All Vortex Products bought from Extravision are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It's about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn't matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
•Unlimited Lifetime Warranty
•Fully transferable
•No warranty card to fill out
•No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product.
